Joint inversion of geophysical data with Gramian constraints

Our Technology

TechnoImaging®’s unique suite of joint inversion method with Gramian constraints realizes effective and practical interpretation of different physical parameters of a geological model.

Density, conductivity, and magnetic properties are considered simultaneously. No prior knowledge is required about the types of relationships between different model parameters Linear and nonlinear relationships between different physical parameters are revealed during inversion.

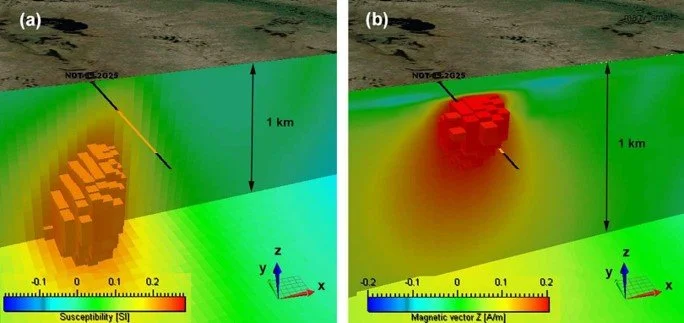

Comparison of 3D inverse models with drilling results. Left panel (a) shows the volume image of the inverse susceptibility model. Right panel (b) presents the volume image of the vertical component of the magnetization vector. The black-yellow-black solid line shows the location of the borehole drilled in the survey area. The yellow color indicates the mineralization zone confirmed by drilling.
